Model nûmer.: EV101WXM-N81

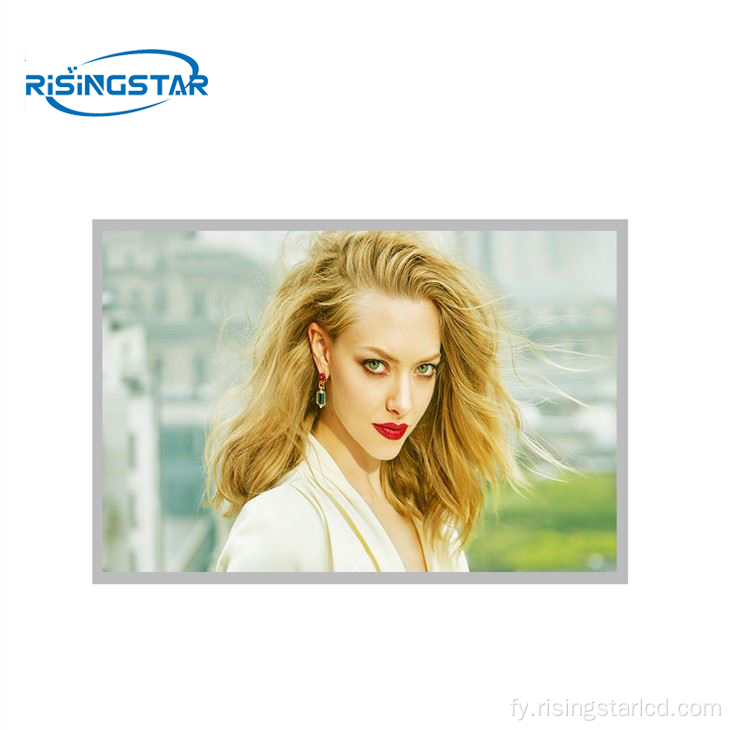

EV101WXM-N81 is in 10.1-inch LCD-module mei A-SI TFT-LCD-technology. It is foarsjoen fan wreaune efterljocht, ynklusyf LED-stjoerprogramma Backlight Drive, gjin oanrekking. Display Resolúsje is 1280 (RGB) × 800 (WXGA), Aspektferhâlding is 16:10 (breedte), en piksels binne regele yn RGB-fertikale strepen. It displaygebiet grutte is 216.96 × 135,6 (breedte × Waarbers is 219,4 × 152,9 (breedte ×) × 10,4 (dikte) mm, produkt netto gewicht 505g (TYP.). Yn termen fan efterljochting brûkt dit produkt in gloeid-yngong ljochtboarne mei in libben fan 50k oeren, ynklusyf LED-stjoerprogramma. Ev101wxm-n81 brûkt lvds (1 ch, 8-bit) sinjaalynterface, yn totaal 20 pins, brûkt terminalferbining, drive-skermspanning is 3,3v.). It typyske fertikale ferfarskingsrate FV is 60HZ. It wurket op -20 ° C oant 70 ° C en winkels op -30 ° C oant 80 ° C. Basearre op syn wite LED-efterljochting is it libben mear dan 50.000 oeren.
R-Star is ûntstien út Shenzhen, Sina, wy binne in profesjonele fabrikant fan High En markearje LCD, ynklusyf Semi-Outdoor LCD, folslein bûtenlânske hichte, Ultrathin Markearje LCD, Outdoor Splicing Markearje LCD, yndustriële hichtepunt TFT-LCD, transparante LCD en werjaan Frame, dûbele sided LCD, Hege-ljocht Double-Sided LCD en oare High-End LCD LCD-Panel. Koartsein hat opkommende mear dan 5 jier fan hege helderde modulechnology-technologyûnderfining, 8 jier fan grutte TFT-module ûntwerp, ûndersyk, produksje- en ûntwikkelingskapasiteit, 10 jier fan hege kwaliteit raw matermateriaal ketting.
| brand | BOE | Model name | EV101WXM-N81 |
| size | 10.1 inch | Screen type | a-Si TFT-LCD,LCD module |
| resolution ratio | 1280(RGB)×800, WXGA, 149PPI | Pixel configuration | RGB vertical bar |
| Display Area | 216.96×135.6(H×V)mm | Surface treatment | / |
| Visual size | 233.2×152.9×10.4(H×V×D) mm | Contrast Ratio | 900:1 (Typ.) (TM) |
| Brightness(cd/m²) | 500cd/m²(Typ.)or customized | Outline dimension | 233.2×152.9×10.4(H×V×D)mm |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) | ||
| Signal interface | LVDS (1 ch, 8-bit) ,erminal, 20 pins | ||
| work environment | Storage temperature: -30 to 80 °C Operation Temperature: -20 to 70 °C |
Itselde grutte model en parameters binne as folgjend
| brand | BOE | Model name | EV101WUM-N20 |
| size | 10.1 inch | Screen type | a-Si TFT-LCD,LCD module |
| resolution ratio | 1920(RGB)×1200, WUXGA, 224PPI | Pixel configuration | RGB vertical bar |
| Display Area | 216.806×135.504mm(H×V) | Surface treatment | / |
| Visual size | / | Contrast Ratio | 900:1 (Typ.) (TM) |
| Brightness(cd/m²) | 600cd/m²(Typ.)or customized | Outline dimension | 229.45×149.22(H×V)mm |
| Viewing Angle | 80/80/80/80(Typ.)(CR≥10) | ||
| Signal interface | LVDS (1 ch, 8-bit) ,erminal, 45 pins | ||
| work environment | Storage temperature: -25 to 80 °C Operation Temperature: -20 to 70 °C |
| brand | BOE | Model name | AT101WSM-N11-58P0 |
| size | 10.1 inch | Screen type | a-Si TFT-LCD,LCD module |
| resolution ratio | 1024(RGB)×600, WSVGA, 117PPI | Pixel configuration | RGB vertical bar |
| Display Area | 222.72×125.28mm(H×V) | Surface treatment | Fog surface，Hard coating (3H) |
| Visual size | 226×128.6(H×V)mm | Contrast Ratio | 500:1 (Typ.) (TM) |
| Brightness(cd/m²) | 500cd/m²(Typ.)or customized | Outline dimension | 235×144.9×5.44mm(H×V×D) |
| Viewing Angle | 80/80/60/70(Typ.)(CR≥10) | ||
| Signal interface | LVDS (1 ch, 6/8-bit) , 60 pins , FPC | ||
| work environment | Storage temperature: -30 to 80 °C Operation Temperature: -20 to 70 °C |
| brand | BOE | Model name | EV101WXM-N82 |
| size | 10.1 inch | Screen type | a-Si TFT-LCD,LCD module |
| resolution ratio | 1280(RGB)×800 [WXGA] 149PPI | Pixel configuration | RGB vertical bar |
| Display Area | 216.96 × 135.6 mm (H×V) | Surface treatment | / |
| Visual size | / | Contrast Ratio | 900:1 (Typ.) (TM) |
| Brightness(cd/m²) | 500cd/m²(Typ.)or customized | Outline dimension | 228.6 ×149.2×6 mm (H×V×D) |
| Viewing Angle | 85/85/85/85(Typ.)(CR≥10) | ||
| Signal interface | LVDS (1 ch, 8-bit) ,erminal, 40 pins | ||
| work environment | Storage temperature: -30 to 80 °C Operation Temperature: -20 to 70 °C |
