10.3 "LG LA103DV1-SL01 TFT LCD Module

Min. Oarder:1 Piece/Pieces

Produktattributen
Ferpakking en levering
Other information

Produktattributen

Model nûmer.: LA103DV1-SL01

Ferpakking en levering

Units ferkeapje:

Piece/Pieces

Produkt Yntroduksje

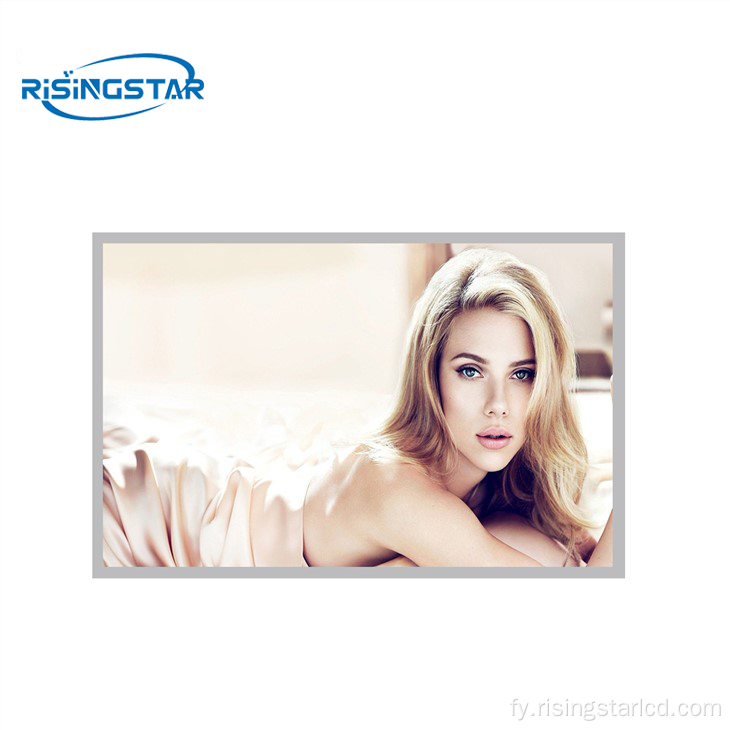

10.3 Inch LG Display LA103DV1-SL01 Hege helderheid 650Nits TFT LCD Panel sinneljocht sichtber sichtber.

Same Sipmodel: La103WF3-SL01

brand	LG Display (LG Display)	Model name	LA103DV1-SL01
size	10.3 inch	Screen type	a-Si TFT-LCD,LCD module
resolution	1280(RGB)×480 DVGA 133PPI	Pixel configuration	RGB vertical bar
Display size	243.84×91.44(H×V) mm	Surface treatment
Brightness(cd/m²)	650 cd/m² (Min.) or customized	contrast	1000:1 (Min.) (TM)
Viewing Angle	89/89/89/89 (Min.)(CR≥10)	Appearance of size	257.7×126.3×20.9(H×V×D)mm
Signal system	50 pins LVDS (1 ch, 8-bit) , FPC
Maximum rated	Storage temperature: -40 ~ 90 °C Working temperature: -40 ~ 85 °C Vibration resistance: 3.0g (29.4m /s²)
